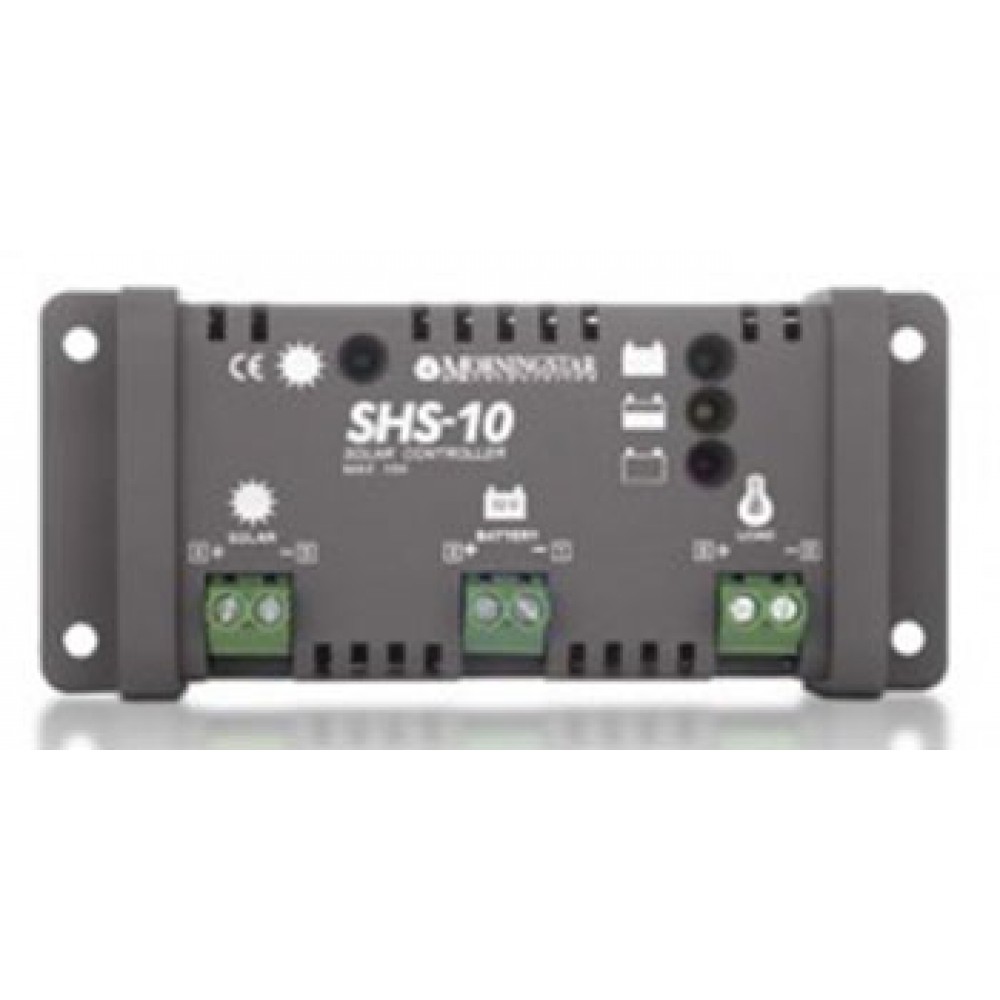

Morningstar SHS-10 12 10A Regulator

Morningstar SHS-10 12 10A Regulator

  • $59.95

  • Ex Tax: $54.50
- +

 PDF Product Brochure



Morningstar’s well-known high quality and reliability is now available in a low cost solar controller. The SHS Controller is ideal for rural electrification systems with one to three solar panels. This controller meets World Bank specifications and provides many features and benefits.

Benefits of a Solar Controller

  • It is important to include a controller in a solar power system.

Reduces Cost of Battery Replacements

  • The low voltage disconnect will increase battery life.The loads are automatically disconnected when the battery is low and automatically reconnected after the battery is recharged.
  • Complete charging will increase battery life and storage capacity. The controller will maximize the amount of solar energy into the battery and avoid drying out the battery.

Provides Useful Information

  • LEDs display status information and battery level which helps the user to better operate the solar power system.

Advantages of the SHS Controller

  • Morningstar’s SHS controller has many advantages compared to other controllers:

Low Cost

  • The SHS was specifically designed to meet the needs of the rural electrification market. The low cost resulted from using the latest electronic technology and high volume manufacturing.

High Reliability

  • Morningstar is a world-leading supplier of solar charge controllers.All our controllers are designed for high quality and high reliability. The SHS controller has a low failure rate and will last a long time.

Electronic Protections

  • The SHS has built-in electronic fuses that do not require replacement. Any wiring mistakes during installation will not damage the controller.

Tropicalization

  • The SHS electronics are protected with a moisture-tight coating, minimizing damage from humidity and from nesting insects.

Easy To Use

  • The SHS controller is fully automatic and requires no adjustments or user selections.

Specifications:

Brand Morning Star
Nominal DC voltage 12
Maximum charge current (Amps) 6 or 10
Load Control (Amps) 6 or 10
Low Voltage Disconnect (LVD)Yes
Battery Type Sealed & Flooded
Adjustable Regulation Set-points No
Temperature Compensation Yes
Display LED
Mounting Wall mount
IP Rating IP22
Operating Temp. -25°C to 50°C
Ground Type Positive
Warranty
Weight2.00
Model Number on CEC List SHS-10
