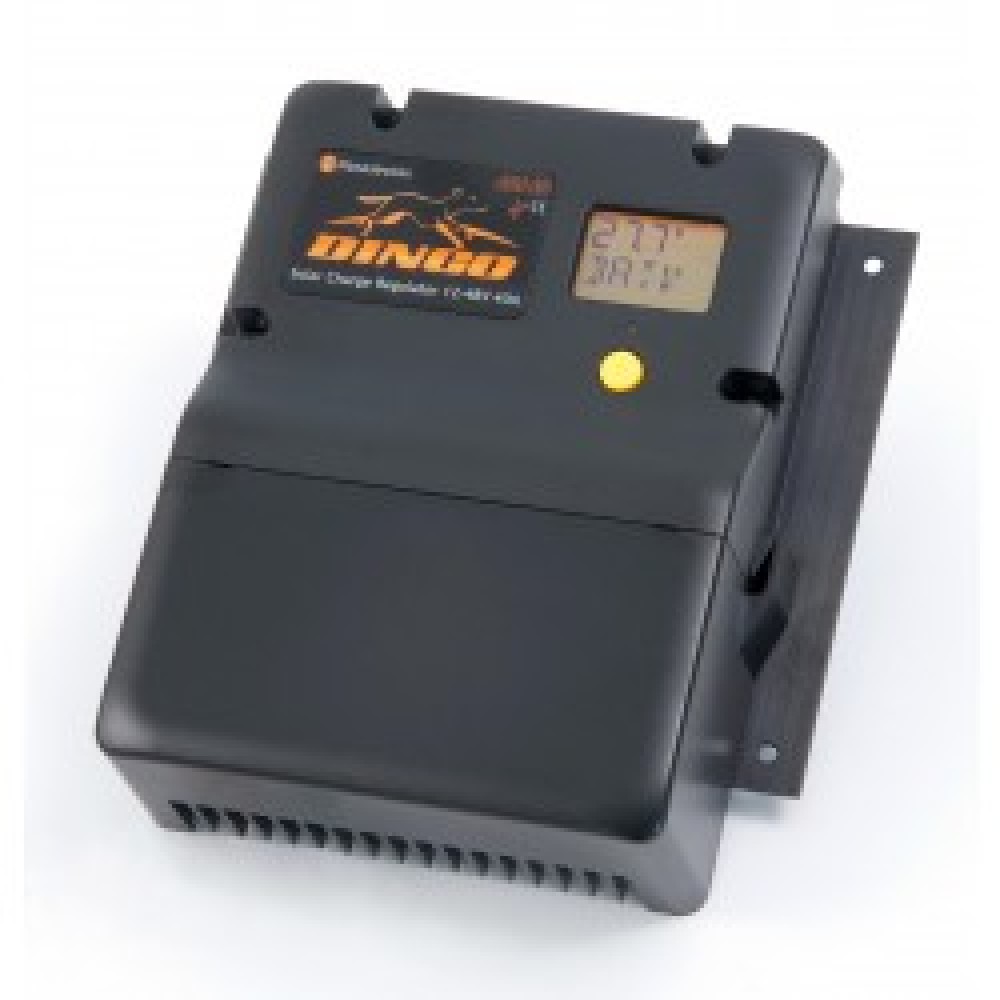

Plasmatronics PLD4040P Dingo 12-48V 40A Regulator
-
$465.00
- Ex Tax:$422.73
- Brand:
- Product Code:PLD4040P
- Availability:In Stock
-
+
The Dingo series of solar controllers is exceptionally versatile. They give the user unparalleled capability to adjust the function of the controller and to monitor the performance of the energy system. PLD4040P handles 40A charge and load current from 12V-48V, positive ground.
Specifications:
| Brand | Plasmatronics |
| Nominal DC voltage | 12, 24, 32, 36, 48 |
| Maximum charge current (Amps) | 40 |
| Load Control (Amps) | 40 |
| Low Voltage Disconnect (LVD) | Yes |
| Battery Type | All types - Programmable |
| Adjustable Regulation Set-points | Yes |
| Temperature Compensation | Yes |
| Display | LCD |
| Mounting | Wall mount |
| Ground Type | Positive |
| Operating Temp. | up to 60 deg C at full current |
| Weight | 1 KG |
